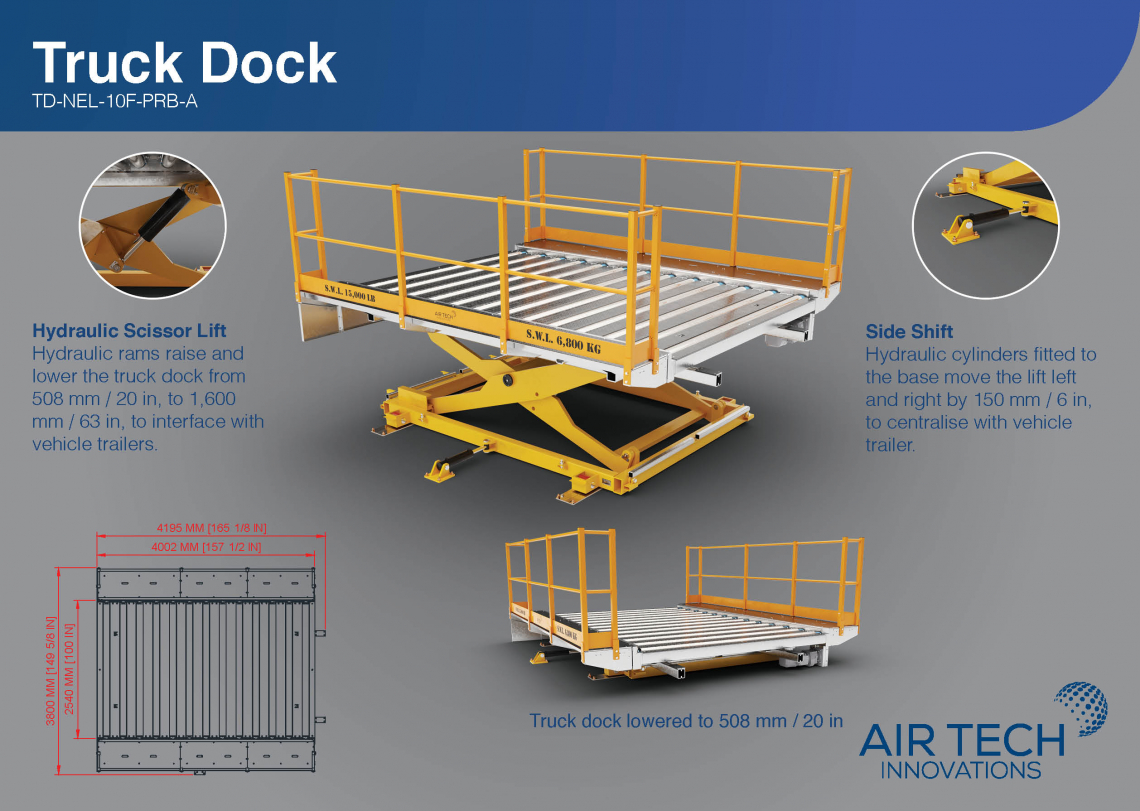

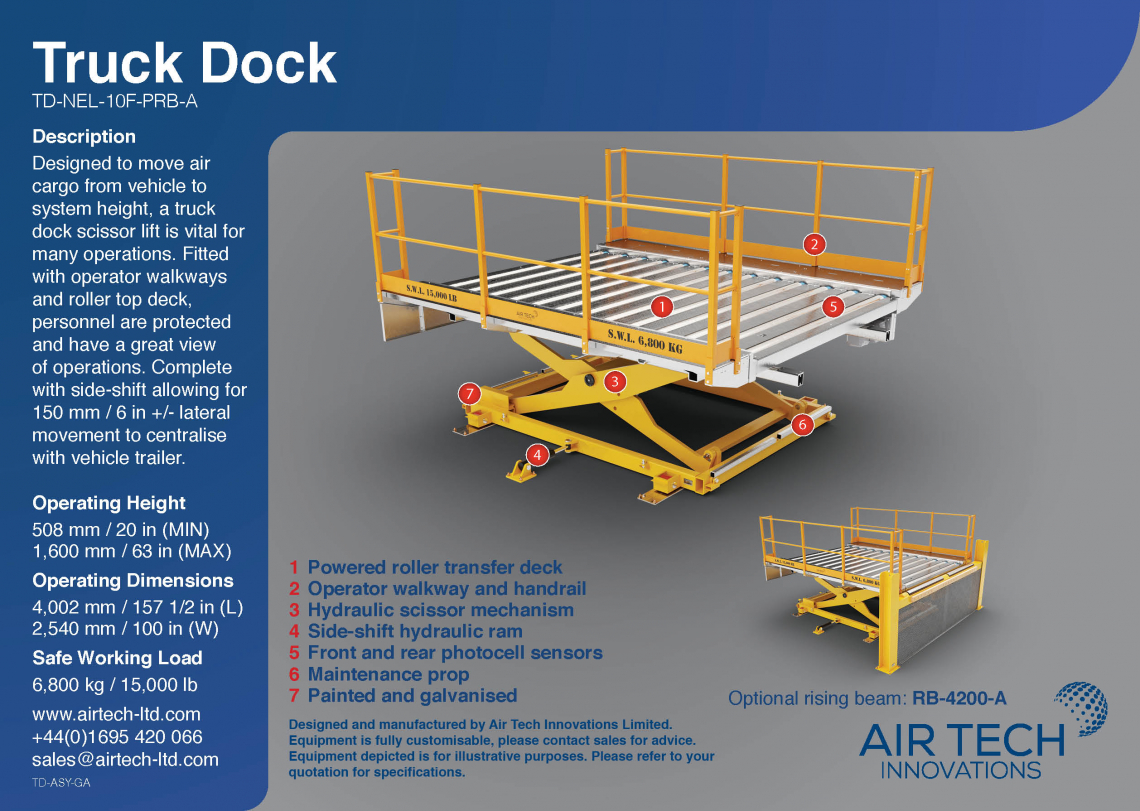

Truck Dock NEL 10 Foot PRB Operator Walkways Both Sides with Side Shift

Description:

Designed to move air cargo from vehicle to system height, a truck dock scissor lift is vital for many operations. Fitted with operator walkways and roller top deck, personnel are protected and have a great view of operations. Complete with side-shift allowing for 150 mm / 6 in +/- lateral movement to centralise with vehicle trailer.

Features:

• Powered roller transfer deck
• Front and rear photocell sensors
• Hydraulic scissor mechanism
• Maintenance prop
• Side-shift hydraulic ram
• Painted and galvanised
• Operator walkway and handrail

Operating Height:

508 mm / 20 in (MIN)
1,600 mm / 63 in (MAX)

Dimensions:

4,002 mm / 157 1/2 in (L)
2,540 mm / 100 in (W)

Safe Working Load:

6,800 kg
